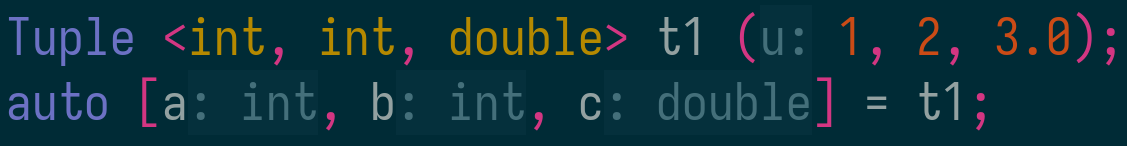

This is a beginner’s guide to a few advanced topics in C++ with the example of implementing a tuple. I’ve tried to explain everything from the ground up in detail keeping everything beginner-friendly and practical. No single line is written by AI 🙂 I’ve started this as an article, but the size of it continues to grow. At the end I think this will become a book. You can find the most up to date version with pdf builds here.

Downloads

• Regular PDF
• Solarized Dark PDF
• Solarized Light PDF

Storing values in the inheritance hierarchy

First let’s understand how a single struct can store variable amount of data of different types (all compile time defined). When the type is fixed we use arrays to avoid using different names for each data field. But now types are arbitrary. The easiest solution is to store data in the inheritance hierarchy where at each level we store a distinct member:

# include <iostream>

struct S1 {
	int value = 10;
};

struct S2 : S1 {
	double value = 2.3;
};

int main () {
	S2 s;
	std::cout << s.value << std::endl;
	std::cout << static_cast <S1 &> (s).value << std::endl;
}

The output is:

2.3
10

This is member hiding, not something like overloading. Both value members are stored in the S2 class. static_cast helps to access the base class’s value member.

Now let’s do the same with templates and value initializers:

# include <iostream>

template <typename T>
struct S1 {
	T value;

	S1 (const T & t)
		: value (t)
	{}
};

template <typename T, typename U>
struct S2 : S1 <T> {
	U value;

	S2 (const T & t, const U & u)
		: S1 <T> (t)
		, value (u)
	{}
};

int main () {
	S2 s (10, 2.3);
	std::cout << s.value << std::endl;
	std::cout << static_cast <S1 <int> &> (s).value << std::endl;
}

Here we store different types of values, but the number of values we store is fixed. We’ll make the number of values dynamic later. This works for a simple case like T=int and U=double, but we have a couple of problems.

The first problem is that when we try to initialize S2 with a string literal like:

S2 s (10, "abc");

The type of “abc” is const char [4] and in the constructor of S2 we are trying to initialize a char array with another array which is forbidden in C++.

The second problem is const T &. We are always copy-constructing the members. This is a bad practice in general because in some cases we can move the data instead of copying which is faster. Furthermore S2 will fail to construct when we use a non-copyable type, for example std::unique_ptr:

S2 s (10, std::make_unique <int> (10));

When we initialize s like this:

S2 s (10, "abc");

The compiler deduces the template types for us. The call above is equivalent to:

S2 <int, const char [4]> (10, "abc");

The solution to the first problem is to add a deduction guide to help the compiler to deduce the template types better for us. After the definition of S2 we have to add:

template <typename T, typename U>
S2 (T, U) -> S2 <T, U>;

When we don’t explicitly add this deduction guide, the compiler generates one for us based on the constructor signature:

template <typename T, typename U>
S2 (const T &, const U &) -> S2 <T, U>;

In C++ string literals are arrays of const chars by default. Template argument deduction for deduction guides work like it works for function calls. When template argument deduction happens for a templated function call, these rules apply.

These rules specify that if the parameter type isn’t a reference type and the argument type is an array type, the argument type is replaced by the pointer type obtained from array-to-pointer conversion. The implicitly generated deduction guide uses the constructor’s signature hence uses const references. Our deduction guide uses non-reference types so array to pointer decay happens.

Now let’s solve the second problem.

Perfect forwarding

The solution to the second problem is to use perfect forwarding:

# include <iostream>
# include <memory>
# include <type_traits>
# include <utility>

template <typename T>
struct S1 {
	T value;

	template <typename T1>
	S1 (T1 && t)
		: value (std::forward <T1> (t))
	{}
};

template <typename T, typename U>
struct S2 : S1 <T> {
	U value;

	template <typename T1, typename U1>
	S2 (T1 && t, U1 && u)
		: S1 <T> (std::forward <T1> (t))
		, value (std::forward <U1> (u))
	{}
};

template <typename T, typename U>
S2 (T, U) -> S2 <T, U>;

int main () {
	S2 s (10, std::make_unique <int> (10));
	std::cout << * s.value.get () << std::endl;
	std::cout << static_cast <S1 <int> &> (s).value << std::endl;
}

To understand what std::forward does, we need to understand the reference collapsing rules. In C++20 we have two types of references: lvalue references and rvalue references. The logic behind them is strictly tied to the value categories of expressions.

Value category is a property of an expression. There are five value categories: three primary and two extended. Lvalue, xvalue (expiring value) and prvalue (pure rvalues) are the primary value categories. Lvalues and xvalues together are called glvalues (generic lvalues). Xvalues and prvalues together are called rvalues. xvalues are both glvalues and rvalues at the same time.

C++11 introduced these value categories with two main properties in mind: whether the expression refers to an object having identity beyond the expression’s evaluation or not and whether we can steal/move from it or not.

Lvalues are expressions which evaluate to an object in memory which exists beyond the lifetime of that expression. In other words, lvalues are expressions which refer to an object with identity. We can’t move/steal from lvalues without casting them to xvalues. For example, an expression which names a variable or object member is an lvalue. In contrast, when we call a function returning an int, the call expression evaluates to a temporary object containing the returned value which doesn’t exist before or after the evaluation of the expression, hence this expression isn’t an lvalue. This holds when we return non-reference types. For functions returning references, the rules change.

Prvalues are the opposite of lvalues: they don’t have identity, but we can steal from them. For example, a call to a function returning a non-reference type such as int is a prvalue expression.

Xvalues are the expressions which both have identity and can be moved from.

These aren’t the exact rules, I’m trying to keep things simple and beginner friendly.

To understand what it means to steal/move from an object and why we do it at all, let’s consider this example:

# include <iostream>

class IntCell
{
public:
	explicit IntCell (int initialValue = 0)
		: m_storedValue (new int {initialValue})
	{
		std::cout << "ctor" << std::endl;
	}

	~IntCell () {
		delete m_storedValue;
		std::cout << "dtor" << std::endl;
	}

	IntCell (const IntCell & o)
		: m_storedValue (new int {* o.m_storedValue})
	{
		std::cout << "copy ctor" << std::endl;
	}

	IntCell & operator= (const IntCell & o) {
		if (this != & o) {
			* m_storedValue = * o.m_storedValue;
		}
		std::cout << "copy assign" << std::endl;
		return * this;
	}

	int read () const {
		return * m_storedValue;
	}

	void write (int x) {
		* m_storedValue = x;
	}

private:
	int * m_storedValue;
};

IntCell foo () {
	IntCell c;
	c.write (22);
	return c;
}

int main () {
	IntCell c (foo ());
	std::cout << "..." << std::endl;
}

When we disable the copy elision optimization of the compiler, for example with the -fno-elide-constructors option of clang, the output will be:

ctor
copy ctor
dtor
...
dtor

Here foo constructs an IntCell object, returns it, we copy it to the variable c in the main function then the returned IntCell object gets destroyed. When the main function ends, c destroys too. When we initialize c with foo’s returned value, the copy constructor of IntCell allocates a new int with the value of the returned IntCell object’s m_storedValue member. So we have two int allocations on the heap. But since after the call of foo we copy the returned object and it gets destroyed, we could just take its already allocated m_storedValue member instead of copying. That would be one (actually two) pointer assignments instead of a new allocation plus initialization of a member. In case of classes with large allocated data, for example a vector of thousands of ints, or even a vector of a custom type having its own resources, the performance difference becomes significant. C++11 introduced rvalue references which help to avoid this unnecessary copying.

• lvalue references to non-consts can be initialized only with lvalue expressions.
• rvalue references to non-consts can be initialized only with rvalue expressions.

Rvalue references are a better match to take prvalues in function overload resolution:

IntCell foo () {
	IntCell c;
	c.write (22);
	return c;
}

void f (IntCell &) {
	std::cout << "foo1" << std::endl;
}

void f (const IntCell &) {
	std::cout << "foo2" << std::endl;
}

void f (IntCell &&) {
	std::cout << "foo3" << std::endl;
}

int main () {
	IntCell c (foo ());
	f (foo ());
}

The expression foo () is prvalue. Here the third implementation of f will be selected since it accepts an rvalue reference. If we remove the third implementation, the second one will be matched: lvalue references to constants can be initialized with rvalues. But if we remove the second overload too, we’ll have an error because we can’t initialize lvalue references to non-consts with temporaries. This is a great video explaining value categories much deeper.

Now we can change the implementation of the IntCell class to handle temporaries better:

# include <iostream>
# include <utility>

class IntCell
{
public:
	explicit IntCell (int initialValue = 0)
		: m_storedValue (new int {initialValue})
	{
		std::cout << "ctor" << std::endl;
	}

	~IntCell () {
		delete m_storedValue;
		std::cout << "dtor" << std::endl;
	}

	IntCell (const IntCell & o)
		: m_storedValue (new int {* o.m_storedValue})
	{
		std::cout << "copy ctor" << std::endl;
	}

	IntCell (IntCell && o) noexcept
		: m_storedValue (o.m_storedValue)
	{
		o.m_storedValue = nullptr;
		std::cout << "move ctor" << std::endl;
	}

	IntCell & operator= (const IntCell & o) {
		if (this != & o) {  // this is the generic copy and swap technique often
							// used with a custom swap overload
							// here we avoid manually repeating the copying
							// instructions used in the copy constructor
			IntCell copy = o;
			std::swap (* this, copy);
		}
		std::cout << "copy assign" << std::endl;
		return * this;
	}

	IntCell & operator= (IntCell && o) noexcept {
		// std::swap (* this, o);	// will go into infinite recursion if swap is
									// implemented with 3 move assignments
		std::swap (m_storedValue, o.m_storedValue); // member-wise swap
		std::cout << "move assign" << std::endl;
		return * this;
	}

	int read () const {
		return * m_storedValue;
	}

	void write (int x) {
		* m_storedValue = x;
	}

private:
	int * m_storedValue;
};

IntCell foo () {
	IntCell c;
	c.write (22);
	return c;
}

int main () {
	IntCell c (foo ());
	std::cout << "..." << std::endl;
}

Here the output (with copy elision disabled) will be:

ctor
move ctor
dtor
...
dtor

And now we do 1 allocation of int on the heap. The constructor taking an rvalue reference is called move constructor. Here instead of allocating a new int and initializing it with the other object’s m_storedValue, we take the object’s member directly. Notice that we assign the other object’s m_storedValue to nullptr since it’s about to destroy and otherwise its destructor would free the memory allocated for m_storedValue.

The copy and move constructors and assignment operators together with the destructor are called Big Five. It’s a good practice to either manually implement big five or implement neither and use the implicitly generated defaults. See this for more info.

The move constructor and the move assignment typically do only pointer assignments while the copy constructor and the copy assignment operator do object construction and some other stuff. The object construction itself can throw an exception, for example because of insufficient memory resources. Pointer assignments can’t throw an exception. When we declare a function in C++ by default it’s allowed to throw exceptions. To explicitly specify that the function doesn’t throw an exception, we use the noexcept specifier. When STL containers like std::vector reallocate the data, they use the move constructor/assignment instead of the copy constructor/assignment only when the move constructor/assignment is explicitly marked noexcept. The reason is simple: when you move the data and it throws, you’ve lost your data. The exception can happen in the middle of the move process and invalidate your data. When you copy the data and it throws, you’ve failed to move your data to the reallocated storage, but your existing data remains valid.

Template specialization

To support arbitrary number of members of arbitrary types, we need to understand how template specialization, parameter packs and template recursion work. We need template specialization also to demonstrate some examples about perfect forwarding, so let’s try to understand how template specialization works with the example of std::decay_t since we need some constructs used in its implementation.

std::decay_t is defined like:

namespace std {
template <typename T>
using decay_t = typename decay <T>::type;
}

where std::decay is a specialized templated struct. What std::decay does is:

• If T is “array of U” or reference to it, the member typedef type is U*.
• Otherwise, if T is a function type F or reference to one, the member typedef type is std::add_pointer::type.
• Otherwise, the member typedef type is std::remove_cv<std::remove_reference::type>::type.

To not complicate things further we’ll skip the function case and implement a mini decay, but first we have to understand how the template specialization works.

# include <iostream>

template <typename T>
struct S {
	static inline const char * value = "generic";
};

template <>
struct S <int> {
	static inline const char * value = "int";
};

template <>
struct S <double> {
	static inline const char * value = "double";
};

int main () {
	std::cout << S <int>::value << std::endl;
	std::cout << S <double>::value << std::endl;
	std::cout << S <float>::value << std::endl;
}

Output:

int
double
generic

The idea is that we can have different implementations of the same templated struct based on the template parameters. Here the inline keyword is necessary to be able to initialize the static members directly inside structs.

These all match the generic specialization since none of them is int or double:

std::cout << S <const int>::value << std::endl;
std::cout << S <volatile int>::value << std::endl;
std::cout << S <const volatile int>::value << std::endl;
std::cout << S <int &>::value << std::endl;
std::cout << S <int &&>::value << std::endl;

We can specialize templates based on reference category and const volatile qualifiers:

# include <iostream>

template <typename T>
struct S {
	static inline const char * value = "generic";
};

template <typename T>
struct S <const T> {
	static inline const char * value = "const";
};

template <typename T>
struct S <volatile T> {
	static inline const char * value = "volatile";
};

template <typename T>
struct S <const volatile T> {
	static inline const char * value = "const volatile";
};

template <typename T>
struct S <T &> {
	static inline const char * value = "lvalue reference";
};

template <typename T>
struct S <T &&> {
	static inline const char * value = "rvalue reference";
};

int main () {
	std::cout << S <int>::value << std::endl;
	std::cout << S <const int>::value << std::endl;
	std::cout << S <volatile int>::value << std::endl;
	std::cout << S <const volatile int>::value << std::endl;
	std::cout << S <int &>::value << std::endl;
	std::cout << S <int &&>::value << std::endl;
}

The output is:

generic
const
volatile
const volatile
lvalue reference
rvalue reference

The compiler selects the specialization that is the most specialized.

For example here:

# include <iostream>

template <typename T>
struct S { // primary template
	static inline const char * value = "generic";
};

template <typename T>
struct S <volatile T> { // specialized template
	static inline const char * value = "volatile";
};

template <typename T>
struct S1 { // primary template
	static inline const char * value = "generic";
};

template <typename T>
struct S1 <const T> { // specialized template
	static inline const char * value = "const";
};

int main () {
	std::cout << S <int>::value << std::endl;
	std::cout << S <const int>::value << std::endl;
	std::cout << S1 <int>::value << std::endl;
	std::cout << S1 <const int>::value << std::endl;
}

In the case of S, the primary template matches both int and const int because T is a type which can be both int and const int. The specialized version matches neither of them.

In case of S1, the specialization is “more specialized” for const ints than the primary template: they both match const int, but the specialized version is a stricter match, because it matches only const types while the primary template matches both const and non-const types, hence the specialization is more specialized for const ints.

The interesting thing here is what happens to T within the template. The template matched const int with the template parameter of type const T, so T within the template becomes int.

We can drop both const and volatile qualifiers and references with templates. In all of these cases the struct member type is int:

# include <iostream>

template <typename T>
struct S {
	using type = T;
};

template <typename T>
struct S <const T> {
	using type = T;
};

template <typename T>
struct S <volatile T> {
	using type = T;
};

template <typename T>
struct S <const volatile T> {
	using type = T;
};

template <typename T>
struct S <T &> {
	using type = T;
};

template <typename T>
struct S <T &&> {
	using type = T;
};

int main () {
	S <int>::type v1;
	S <const int>::type v2;
	S <volatile int>::type v3;
	S <const volatile int>::type v4;
	S <int &>::type v5;
	S <int &&>::type v6;
}

All v1, v2, v3, v4, v5 and v6 variables are of type int. But what happens when we use S <const int &>::type? const int & is a reference to const int, so it’s a reference and only then a const. The struct S <T &> specialization gets selected and S <const int &>::type becomes const int.

Now we can implement separate templates to remove const and volatile qualifiers and references from types:

template <typename T>
struct RemoveCV {
	using type = T;
};

template <typename T>
struct RemoveCV <const T> {
	using type = T;
};

template <typename T>
struct RemoveCV <volatile T> {
	using type = T;
};

template <typename T>
struct RemoveCV <const volatile T> {
	using type = T;
};

template <typename T>
struct RemoveReference {
	using type = T;
};

template <typename T>
struct RemoveReference <T &> {
	using type = T;
};

template <typename T>
struct RemoveReference <T &&> {
	using type = T;
};

Now we can use these type traits as follows:

RemoveCV <int>::type v1;
RemoveCV <const int>::type v2;
RemoveCV <const volatile int>::type v3;
RemoveReference <int>::type v4;
RemoveReference <int &>::type v5;
RemoveReference <int &&>::type v6;

All of v1 to v6 are ints.

Furthermore we can convert (decay) arrays to pointers:

# include <iostream>
# include <type_traits>

template <typename T>
struct ArrayDecay;

template <typename T, std::size_t S>
struct ArrayDecay <T [S]> {
	using type = T *;
};

template <typename T>
struct ArrayDecay <T []> {
	using type = T *;
};

int main () {
	std::cout << std::is_same_v <ArrayDecay <int [2]>::type, int *> << std::endl;
	std::cout << std::is_same_v <ArrayDecay <const int [2]>::type, const int *> << std::endl;
	std::cout << std::is_same_v <ArrayDecay <int []>::type, int *> << std::endl;
	std::cout << std::is_same_v <ArrayDecay <const int []>::type, const int *> << std::endl;
}

The implementation of std::is_same_v is trivial:

template <typename, typename>
struct IsSame;

template <typename T, typename U>
struct IsSame {
	static constexpr bool value = false;
};

template <typename T>
struct IsSame <T, T> {
	static constexpr bool value = true;
};

template <typename T, typename U>
inline constexpr bool IsSameV = IsSame <T, U>::value;

The IsSame type trait have two specializations. When both types are the same, the second specialization is more specialized so the value becomes true. When types are different, the first specialization gets selected where the value is false. This is because the set of possible T, U combinations the second specialization matches is a subset of the possible T, U combinations the first specialization matches, so when the second specialization matches, it’s a stricter, more specialized match.

And now we can implement a mini decay skipping the function case:

# include <cstddef>
# include <iostream>
# include <type_traits>



template <typename T>
struct RemoveCV {
	using type = T;
};

template <typename T>
struct RemoveCV <const T> {
	using type = T;
};

template <typename T>
struct RemoveCV <volatile T> {
	using type = T;
};

template <typename T>
struct RemoveCV <const volatile T> {
	using type = T;
};



template <typename T>
struct RemoveReference {
	using type = T;
};

template <typename T>
struct RemoveReference <T &> {
	using type = T;
};

template <typename T>
struct RemoveReference <T &&> {
	using type = T;
};



template <typename T>
struct MiniDecayHelper : RemoveCV <T> {};

template <typename T, std::size_t S>
struct MiniDecayHelper <T [S]> {
	using type = T *;
};

template <typename T>
struct MiniDecayHelper <T []> {
	using type = T *;
};

template <typename T>
struct MiniDecay : RemoveReference <typename MiniDecayHelper <T>::type> {};

template <typename T>
using MiniDecayT = typename MiniDecay <T>::type;



int main () {
	std::cout << std::is_same_v <int, MiniDecayT <int>> << std::endl;
	std::cout << std::is_same_v <int, MiniDecayT <const int>> << std::endl;
	std::cout << std::is_same_v <int, MiniDecayT <volatile int>> << std::endl;
	std::cout << std::is_same_v <int, MiniDecayT <const volatile int>> << std::endl;
	std::cout << std::is_same_v <int, MiniDecayT <int &>> << std::endl;
	std::cout << std::is_same_v <int, MiniDecayT <int &&>> << std::endl;
	std::cout << std::is_same_v <const int, MiniDecayT <const int &>> << std::endl;
	std::cout << std::is_same_v <const int, MiniDecayT <const int &&>> << std::endl;
	std::cout << std::is_same_v <int *, MiniDecayT <int []>> << std::endl;
	std::cout << std::is_same_v <int *, MiniDecayT <int [2]>> << std::endl;
	std::cout << std::is_same_v <const int *, MiniDecayT <const int [2]>> << std::endl;
}

MiniDecayT <int [2]> will be int * and MiniDecayT will be double.

One more thing, and we’ll be able to understand how std::forward works and why we use it.

Reference collapsing

C++ doesn’t allow taking references to references. When we try to do so, the references “collapse” to a single reference and we still get a reference to a non-reference type. The interesting part here is what happens when we try to take an lvalue reference to an rvalue reference or itself or vice versa.

Let’s see what happens here:

# include <iostream>
# include <type_traits>

template <typename T>
struct RefType;

template <typename T>
struct RefType <T &> {
	static inline const char * value = "lvalue reference";
};

template <typename T>
struct RefType <T &&> {
	static inline const char * value = "rvalue reference";
};

int main () {
	std::cout << RefType <int &>::value << std::endl;
	std::cout << RefType <int &&>::value << std::endl;

	std::cout << "====================" << std::endl;

	std::cout << RefType <int &  (&)>::value << std::endl;
	std::cout << RefType <int && (&)>::value << std::endl;
	std::cout << RefType <int &  (&&)>::value << std::endl;
	std::cout << RefType <int && (&&)>::value << std::endl;

	std::cout << "====================" << std::endl;

	std::cout << std::is_same_v <int &  (&), int &> << std::endl;
	std::cout << std::is_same_v <int && (&), int &> << std::endl;
	std::cout << std::is_same_v <int &  (&&), int &> << std::endl;
	std::cout << std::is_same_v <int && (&&), int &&> << std::endl;
}

Here we have the templated struct RefType which helps to identify the reference category of the given type. First we test it with obvious examples, make sure that everything is correct and then analyze “the mixed references” with the help of it. For example when we write int & (&&), we are “trying to create an rvalue reference of an lvalue reference of an int”.

The output is:

lvalue reference
rvalue reference
====================
lvalue reference
lvalue reference
lvalue reference
rvalue reference
====================
1
1
1
1

Turns out that when we “create an lvalue reference of a reference” we get an lvalue reference: if the reference was an rvalue reference, it becomes an lvalue reference, otherwise it remains an lvalue reference. But “creating an rvalue reference to a reference” preserves the original reference category.

This is a demonstration of the reference collapsing rules in C++20. The result we’ve got is a rule in the C++ standard, not a side effect of another rule, so there’s nothing to explain why it works like this.

Preserving reference categories of function arguments

Why do we even have to “preserve” the reference categories of the function arguments? Don’t they preserve it automatically?

Let’s see what happens here:

# include <iostream>
# include <type_traits>

template <typename T>
struct RefType {
	static inline const char * value = "generic";
};

template <typename T>
struct RefType <T &> {
	static inline const char * value = "lvalue reference";
};

template <typename T>
struct RefType <T &&> {
	static inline const char * value = "rvalue reference";
};

template <typename T>
const char * testRef (T) {
	return RefType <T>::value;
}

int main () {
	int x = 10;

	std::cout << testRef (static_cast <int &> (x)) << std::endl;
	std::cout << testRef (static_cast <int &&> (x)) << std::endl;
}

The output is:

generic
generic

When we don’t explicitly specify the template parameters when calling a function, template types drop reference-ness. So if we want a templated function to take a reference we have to either manually specify template types when calling the function like testRef <int &> (…) or rewrite the function to explicitly take references. The exact rules can be found here.

As we know we can’t initialize an rvalue reference directly with an lvalue expression (without casting):

void foo (int &&) {
}

int main () {
	int x = 10;
	foo (4);
	foo (x); // error
}

The second call of foo fails because x being an identifier forms an lvalue expression and we try to pass it to a function taking an rvalue reference. We could initialize an lvalue reference with the lvalue expression. In C++ every expression referring to a variable with its identifier is an lvalue expression no matter the variable type.

This is where templates help: they support reference collapsing:

# include <iostream>
# include <type_traits>

template <typename T>
void foo (T &&) {
	if (true == std::is_same_v <int &, T &&>) {
		std::cout << "int &" << std::endl;
	}
	else if (true == std::is_same_v <int &&, T &&>) {
		std::cout << "int &&" << std::endl;
	}
	else {
		std::cout << "other" << std::endl;
	}
}

int main () {
	int x = 10;
	foo (4); // 4 is an expression of rvalue value category
	foo (x); // x is an expression of lvalue value category
	foo (static_cast <int &> (x)); // static_cast <int &> (x) is an expression of lvalue value category
	foo (static_cast <int &&> (x)); // static_cast <int &&> (x) is an expression of xvalue value category
}

The output is:

int &&
int &
int &
int &&

We test T &&, not T, because after reference collapsing the type of the argument is T &&, not T. In case of rvalue and xvalue expressions being passed as an argument - 4 and static_cast <int &&> (x) in the example above - T becomes int. In case of lvalue integer expressions T becomes int &. When T is int &, reference collapsing happens and T && becomes T &. Otherwise when T is int, T && becomes int &&. See this for more info. We have successfully preserved the reference category of the function argument.

When the function have overloads with both T & and T && parameters, and we call the function without explicitly specifying the template type parameter, the usual rules apply:

# include <iostream>

template <typename T>
const char * refType (T &) {
	return "lvalue reference";
}

template <typename T>
const char * refType (T &&) {
	return "rvalue reference";
}

int main () {
	int x;

	std::cout << refType (x) << std::endl;
	std::cout << refType (5) << std::endl;

	std::cout << "====================" << std::endl;

	int & lref = x;
	int && rref = 5;

	std::cout << refType (lref) << std::endl;
	std::cout << refType (rref) << std::endl;
	std::cout << refType (static_cast <int &&> (rref)) << std::endl;
}

The output is:

lvalue reference
rvalue reference
====================
lvalue reference
lvalue reference
rvalue reference

Notice that calling refType (rref) prints “lvalue reference” despite rref being an rvalue reference. This is because rref being an identifier forms an lvalue expression.

Since we can preserve the reference category of the function argument, we can pass the argument to other function with correct type:

# include <iostream>

template <typename T>
const char * refType (T &) {
	return "lvalue reference";
}

template <typename T>
const char * refType (T &&) {
	return "rvalue reference";
}

template <typename T>
void printRefType (T && t) {
	std::cout << refType (static_cast <T &&> (t)) << std::endl;
}

int main () {
	int x;

	printRefType (x);
	printRefType (5);

	std::cout << "====================" << std::endl;

	int & lref = x;
	int && rref = 5;

	printRefType (lref);
	printRefType (rref);
	printRefType (static_cast <int &&> (rref));
}

The output is:

lvalue reference
rvalue reference
====================
lvalue reference
lvalue reference
rvalue reference

Here we use both mechanics described above: a function with two overloads taking both T & lvalue reference and T && rvalue reference, and a function with a single implementation taking T &&. In the latter case T && isn’t an rvalue reference, it’s called forwarding reference and the process of passing the argument to another function preserving the reference category is called perfect forwarding. In the example above we did it with static_cast.

Notice that here reference collapsing happens before the static_cast is evaluated, in the angle brackets of the static_cast: when T is an lvalue reference T && collapses to an lvalue reference, otherwise when T is not a reference type T && forms an rvalue reference. The expression “t” used in static_cast is an expression of lvalue type. After static_cast we have an expression of either lvalue or xvalue category and the correct overload of the function we’re passing the argument gets selected. We do this, because otherwise the expression “t” would be an expression naming a variable and hence an lvalue. Remember that reference collapsing isn’t a casting between types despite using static_cast.

In our tuple example - where we used S1 and S2 templates - we’ve used std::forward for perfect forwarding.

We have to discuss one more thing before we move forward and implement std::move and std::forward.

When we write a non-template function inside a templated struct, and the function uses the struct’s template parameter types in its parameter list, reference collapsing happens when we initialize an object of that struct type, or when we use that struct directly to call a static method, reference collapsing happens when we finish describing the type, not when we call the method:

# include <iostream>

template <typename T>
const char * refType (T &) {
	return "lvalue reference";
}

template <typename T>
const char * refType (T &&) {
	return "rvalue reference";
}

template <typename T>
struct S {
	static void printRefType (T && t) {
		std::cout << refType (static_cast <T &&> (t)) << std::endl;
	}
};

int main () {
	S <int &> s1;
	S <int &&> s2;

	int x;
	s1.printRefType (x);
	// s2.printRefType (x); // error

	S <int &>::printRefType (x);
	// S <int &&>::printRefType (x); // error
}

Here reference collapsing happens when we define s1 and s2, and when we describe the type S <int &> to access its static method, not when we call the printRefType method of s1 or s2, or when we call the static method of S <int &>. So in this case reference collapsing doesn’t depend on the arguments we pass and the usual rules apply.

Implementing a tuple we’ve used std::forward like this:

template <typename T, typename U>
struct S2 : S1 <T> {
	U value;

	template <typename T1, typename U1>
	S2 (T1 && t, U1 && u)
		: S1 <T> (std::forward <T1> (t))
		, value (std::forward <U1> (u))
	{}
};

Instead of using the struct’s template parameters, we’ve implemented a templated constructor to have reference collapsing. This is a complete example of using reference collapsing in constructor:

# include <iostream>

template <typename T>
const char * refType (T &) {
	return "lvalue reference";
}

template <typename T>
const char * refType (T &&) {
	return "rvalue reference";
}

template <typename T>
struct S {
	template <typename T2>
	S (T2 && t) {
		std::cout << refType (static_cast <T2 &&> (t)) << std::endl;
	}
};

template <typename T>
S (T) -> S <T>;

int main () {
	int x = 5;

	S s1 (x);
	S s2 (5);

	std::cout << "====================" << std::endl;

	int & lref = x;
	int && rref = 5;

	S s3 (lref);
	S s4 (rref);
	S s5 (static_cast <int &&> (rref));
}

The output is:

lvalue reference
rvalue reference
====================
lvalue reference
lvalue reference
rvalue reference

std::forward and std::move

Now we can write our implementation of std::forward. We do perfect forwarding either with static_cast or std::forward from a function accepting a forwarding reference. Remember that the function’s template type parameter is being deduced either as an lvalue reference when we pass an lvalue expression to that function or as a non-reference type when we pass an rvalue expression:

# include <iostream>
# include <utility>

template <typename T>
struct RefType {
	static inline const char * value = "generic";
};

template <typename T>
struct RefType <T &> {
	static inline const char * value = "lvalue reference";
};

template <typename T>
struct RefType <T &&> {
	static inline const char * value = "rvalue reference";
};

template <typename T>
const char * refType (T &) {
	return "lvalue reference";
}

template <typename T>
const char * refType (T &&) {
	return "rvalue reference";
}

template <typename T>
void printRefType (T && t) {
	std::cout << refType (static_cast <T &&> (t)) << " - " << RefType <T>::value << std::endl;
	std::cout << '\t' << refType (std::forward <T> (t)) << std::endl;
}

int main () {
	int x;

	printRefType (x);
	printRefType (5);

	std::cout << "====================" << std::endl;

	int & lref = x;
	int && rref = 5;

	printRefType (lref);
	printRefType (rref);
	printRefType (static_cast <int &&> (rref));
}

Output:

lvalue reference - lvalue reference
		lvalue reference
rvalue reference - generic
		rvalue reference
====================
lvalue reference - lvalue reference
		lvalue reference
lvalue reference - lvalue reference
		lvalue reference
rvalue reference - generic
		rvalue reference

When we’ve used std::forward:

• We’ve passed the variable t directly as an lvalue expression without reference collapsing with static_cast, hence our custom forward implementation must accept an lvalue reference, not a forwarding reference. From the reference collapsing rules remember that T & is always an lvalue reference.
• We’ve explicitly set the template type parameter to T, which is either an lvalue reference or a non-reference type based on the reference category of the expression passed to the printRefType function, hence this is how std::forward knows the correct value category to evaluate to, which is T &&.

The implementation is trivial:

template <typename T>
T && Forward (T & t) {
	return static_cast <T &&> (t);
}

Inside the Forward function the value category of the expression “t” is always an lvalue, the only way we know the value category of the expression passed to Forward is based on the template type’s reference-ness. And after all calling Forward with an rvalue expression will fail since Forward accepts an lvalue reference which can’t be initialized with an rvalue expression, so we have to make the distinction of lvalue and rvalue arguments outside the Forward function.

Here static_cast handles the case of passing an lvalue expression denoting an rvalue reference to the Forward call:

int x;
int && y = static_cast <int &&> (x);
Forward <int &&> (y);

std::forward is implemented to handle these use cases:

• A: Should forward an lvalue as an lvalue.
• B: Should forward an rvalue as an rvalue.
• C: Should not forward an rvalue as an lvalue.
• D: Should forward less cv-qualified expressions to more cv-qualified expressions.
• E: Should forward expressions of derived type to an accessible, unambiguous base type.
• F: Should not forward arbitrary type conversions.

Our Forward implementation is designed the use case A in mind.

To support rvalue expressions too, we have to overload our Forward implementation:

template <typename T>
T && Forward (T &% t) {
	return static_cast <T &&> (t);
}

This would work if we didn’t specify the template type parameter explicitly when calling Forward: T && would be an rvalue reference, not a forwarding reference, because we have distinct overloads of Forward to accept lvalue and rvalue references. We’ve did this for the refType function.

But here we call Forward with explicitly specifying the template type parameter. When T is an lvalue reference type, the parameter type collapses to an lvalue reference type in both overloads. But since function templates are compared before reference collapsing fully erases distinctions relevant to overload resolution, the call wouldn’t be ambiguous, it would choose the first overload.

To truly support lvalue and rvalue overloads, we have disable the reference collapsing and force the parameter types to be lvalue and rvalue references:

template <typename T>
struct RemoveReference {
	using type = T;
};

template <typename T>
struct RemoveReference <T &> {
	using type = T;
};

template <typename T>
struct RemoveReference <T &&> {
	using type = T;
};

template <typename T>
using RemoveReferenceT = RemoveReference <T>::type;

template <typename T>
T && Forward (RemoveReferenceT <T> & t) {
	return static_cast <T &&> (t);
}

template <typename T>
T && Forward (RemoveReferenceT <T> && t) {
	return static_cast <T &&> (t);
}

Here we use RemoveReferenceT to drop the reference-ness of T and make it an lvalue/rvalue reference type. Now our forward implementation handles the use case B too.

In the second overload static_cast is necessary since t being an identifier forms an lvalue expression and can’t be used to initialize an rvalue expression without an explicit cast.

The C case is a little interesting. This will compile and run successfully:

int & x = Forward <int &> (5);

We have two templated overloads of Forward. Since we pass an rvalue expression to the Forward call, the second overload get’s chosen. In Forward’s static_cast t despite being an int && object forms an lvalue expression being an identifier. Then Forward returns an lvalue reference to it’s t parameter which is destroyed after the Forward call ends.

Let’s implement a little verbose class and see what happens when we try to take an lvalue reference to an rvalue expression with our current Forward implementation:

# include <iostream>



template <typename T>
struct RemoveReference {
	using type = T;
};

template <typename T>
struct RemoveReference <T &> {
	using type = T;
};

template <typename T>
struct RemoveReference <T &&> {
	using type = T;
};

template <typename T>
using RemoveReferenceT = RemoveReference <T>::type;

template <typename T>
T && Forward (RemoveReferenceT <T> & t) {
	return static_cast <T &&> (t);
}

template <typename T>
T && Forward (RemoveReferenceT <T> && t) {
	return static_cast <T &&> (t);
}



struct C {
	C () {
		std::cout << "ctor on " << this << std::endl;
	}

	C (const C &) {
		std::cout << "copy ctor on " << this << std::endl;
	}

	C (C &&) noexcept {
		std::cout << "move ctor on " << this << std::endl;
	}

	C & operator= (const C &) {
		std::cout << "move assign on " << this << std::endl;
		return *this;
	}

	C & operator= (C &&) noexcept {
		std::cout << "move assign on " << this << std::endl;
		return *this;
	}

	~C () {
		std::cout << "dtor on " << this << std::endl;
	}
};



int main () {
	C c;
	C & c1 = Forward <C &> (C ());

	c1 = c;
}

The output is:

ctor on 0x7fff6d76946e
ctor on 0x7fff6d76946f
dtor on 0x7fff6d76946f
move assign on 0x7fff6d76946f
dtor on 0x7fff6d76946e

We have assignment on the C object at 0x7fff6d76946f memory location after it’s deletion. This is called an use-after-free bug.

To prevent it we have to add a static assertion in our rvalue overload of Forward:

template <typename>
struct IsLvalueReference {
	static constexpr bool value = false;
};

template <typename T>
struct IsLvalueReference <T &> {
	static constexpr bool value = true;
};

template <typename T>
struct RemoveReference {
	using type = T;
};

template <typename T>
struct RemoveReference <T &> {
	using type = T;
};

template <typename T>
struct RemoveReference <T &&> {
	using type = T;
};

template <typename T>
using RemoveReferenceT = RemoveReference <T>::type;

template <typename T>
T && Forward (RemoveReferenceT <T> & t) {
	return static_cast <T &&> (t);
}

template <typename T>
T && Forward (RemoveReferenceT <T> && t) {
	static_assert (false == IsLvalueReference <T>::value, "don't use after free");
	return static_cast <T &&> (t);
}

When Forward is called with an rvalue expression, we check whether the user tries to initialize an lvalue reference with the rvalue expression, and if he tries so, we cause a compile time error. Now the C case is satisfied too!

When we use Forward like this:

Forward <const T2> (t)

Forward’s parameter and return type become const references which in case of t being an lvalue expression collapse to const lvalue references and become const rvalue references in case of t being an rvalue expression. Our implementation satisfies the D case.

E is satisfied since we do nothing that violates the basic rule in C++ where rvalue/lvalue reference types can be initialized with an expression of an derived type and with the appropriate value category. F is also satisfied since we use referenced and non-reference variations of the same base type both for the Forward’s parameter and return types.

This is how GNU’s STL implements std::forward, except they declare it with the constexpr and noexcept specifiers.

When we use type traits like RemoveReference, RemoveReferenceT, RefType, MiniDecay, etc, the result is being processed compile-time, not run-time. The functions which satisfy C++’s requirements to be evaluated compile-time - roughly speaking functions which don’t use any runtime data - C++ allows to mark them constexpr so the call is potentially being evaluated compile-time. In our examples the refType function could be marked constexpr.

Noexcept guarantees that the function call doesn’t throw any exceptions.

std::move is simpler. It just casts its argument to an rvalue expression. It works like this:

template <typename T>
constexpr RemoveReferenceT <T> && Move (T && value) noexcept {
	return static_cast <RemoveReferenceT <T> &&> (value);
}

Since Move always forms an rvalue expression using it’s argument, we don’t need to guard against an lvalue reference being initialized with an rvalue expression here. Here our goal isn’t to preserve the reference category of the argument. Our goal is to cast the argument to an rvalue expression. If we were used T && as a return type of the function, it would collapse references and produce lvalue expressions in some cases. With RemoveReferenceT we avoid reference collapsing and force the return type to be an rvalue reference. We do the same in static_cast too.

Parameter packs and template recursion

Parameter packs

Our tuple implementation currently supports fixed two members. That’s not a tuple yet. To support arbitrary number of members of arbitrary types, we have to use parameter packs. Consider this example:

# include <memory>
# include <string>
# include <vector>

template <typename ... Ts>
void foo (Ts ...) {
}

int main () {
	foo (1, 2);
	foo (1, "2");
	foo (1, 2, 3, 4, 5);
	foo (std::string ("abc"), 2.4, std::make_unique <int> (10));
	foo (std::vector <int> {1, 2, 3}, std::vector <std::string> {"abc", "def"}, 3.14);
	foo ();
}

First we declare Ts as a pack of types, which can consist of single or multiple types or even can be empty. That’s a special syntax called template parameter pack. In foo’s parameter list we use Ts … vs to accept arbitrary number of arguments of arbitrary types. That’s also a special syntax. It’s called function parameter pack. The “type” of the function parameter must be a template parameter pack. These two functions are invalid:

void foo (int ... vs) {}

template <typename T>
void bar (T ... vs) {}

C++ provides tools like fold expansion and the *sizeof … operator to work with parameter packs:

# include <iostream>

template <typename ... Ts>
void foo (Ts ... vs) {
	int c = sizeof ... (vs);
	int s = (vs + ...);

	std::cout << "parameter count: " << c << ", sum: " << s << std::endl;
}

int main () {
	foo (1);
	foo (1, 2);
	foo (1, 2, 3);
	foo (1, 2, 3, 4);
	foo (1, 2, 3, 4, 5);
	// foo (); // error inside foo
}

Output:

parameter count: 1, sum: 1
parameter count: 2, sum: 3
parameter count: 3, sum: 6
parameter count: 4, sum: 10
parameter count: 5, sum: 15

Here we use the sizeof… operator to get the number of arguments passed. We could use sizeof… on Ts instead:

int c = sizeof ... (Ts);

Then we calculate the sum of parameters with:

int s = (vs + ...);

This is a special syntax called fold expansion. We sum up all the values inside the function parameter pack.

A special case is when we don’t give any argument to foo. vs becomes empty and the (vs + …) fold expression becomes invalid. To handle that case we can add 0 to the sum in the fold expression:

# include <iostream>

template <typename ... Ts>
void foo (Ts ... vs) {
	int c = sizeof ... (vs);
	int s = (vs + ... + 0);

	std::cout << "parameter count: " << c << ", sum: " << s << std::endl;
}

int main () {
	foo ();
}

Now when vs is empty the fold expression evaluates to 0. Otherwise we add 0 to the sum which doesn’t change its value.

Template recursion

Although we calculate the sum in the simplest way, here’s an example on how we can calculate the sum combining parameter packs with recursion:

# include <iostream>

template <typename T, typename ... Ts>
int foo (T v, Ts ... vs) {
	if constexpr (0 == sizeof ... (vs)) {
		return v;
	}
	else {
		return v + foo <Ts ...> (vs ...);
	}
}

int main () {
	std::cout << foo (1) << std::endl;
	std::cout << foo (1, 2) << std::endl;
	std::cout << foo (1, 2, 3) << std::endl;
	std::cout << foo (1, 2, 3, 4) << std::endl;
	std::cout << foo (1, 2, 3, 4, 5) << std::endl;
}

Here we separate the first parameter from the rest. That gives the benefit that when we call the same function passing the rest of the arguments, and that call itself separates its first parameter from the rest and so on moving toward the non-recursive call where the parameter pack is empty. if constexpr is an if statement which is evaluated at compile-time.

Inside foo we check whether the parameter pack is empty or not. If it’s empty, we simply return the first parameter. Otherwise we call foo recursively on the rest of the parameters and add the returned value to the first parameter.

Let’s make the code a little verbose and see what happens:

# include <iostream>

template <typename T, typename ... Ts>
int foo (T v, Ts ... vs) {
	std::cout << "first param: " << v << ", size of the pack: " << sizeof ... (vs) << std::endl;

	if constexpr (0 == sizeof ... (vs)) {
		return v;
	}
	else {
		return v + foo <Ts ...> (vs ...);
	}
}

int main () {
	int sum = foo (1, 2, 3);
	std::cout << "sum: " << sum << std::endl;
}

The output is:

first param: 1, size of the pack: 2
first param: 2, size of the pack: 1
first param: 3, size of the pack: 0
sum: 6

When we call foo (1, 2, 3), in the first call of foo:

• T = int
• Ts is a pack of int, int
• v = 1
• vs is a pack of 2, 3

since vs isn’t empty, we return v + foo <Ts …> (vs …). In that second call of foo:

• T = int
• Ts is a pack of int
• v = 2
• vs is a pack of 3

since vs isn’t empty, we call foo again where:

• T = int
• Ts is an empty pack
• v = 3
• vs is an empty pack

and now since vs empty, sizeof … (vs) becomes 0 and we return 3 which gets summed up with 2 and returned to the main call where that sum is summed up with 1 and returned.

Compile-time if statement

Now let’s understand why we’ve used if constexpr. When we call foo, the compiler generates the appropriate function based on the arguments we’ve passed. When we use if constexpr, the condition is being evaluated compile-time and the false branch isn’t being compiled.

In the last recursive call of foo the compiler tries to compile the whole function body, the false branch too where we have a call of foo <> ().

But since we’ve defined foo as function always having at least one template and at least one function parameter, compiler tries and doesn’t find the foo <> () function and gives an error.

When we use if constexpr, the false branch in the last recursive call of foo doesn’t get compiled, so we avoid that error.

Without if constexpr we could solve that problem just by adding the missing function:

# include <iostream>

template <typename ...>
int foo () { return 0; }

template <typename T, typename ... Ts>
int foo (T v, Ts ... vs) {
	std::cout << "first param: " << v << ", size of the pack: " << sizeof ... (vs) << std::endl;

	if (0 == sizeof ... (vs)) {
		return v;
	}
	else {
		return v + foo <Ts ...> (vs ...);
	}
}

int main () {
	int sum = foo (1, 2, 3);
	std::cout << "sum: " << sum << std::endl;
}

Now let’s try to use foo’s returned value in a place where a compile-time expression is required, for example when we initialize a static array:

# include <iostream>

template <typename ...>
int foo () { return 0; }

template <typename T, typename ... Ts>
int foo (T v, Ts ... vs) {
	std::cout << "first param: " << v << ", size of the pack: " << sizeof ... (vs) << std::endl;

	if (0 == sizeof ... (vs)) {
		return v;
	}
	else {
		return v + foo <Ts ...> (vs ...);
	}
}

int main () {
	if constexpr (0 < foo (1, 2, 3)) {
		std::cout << "positive" << std::endl;
	}
}

This gives an error: “Constexpr if condition is not a constant expression”. That’s because foo doesn’t get evaluated compile-time. Even if we mark it constexpr, we’ll have the same error. constexpr functions are potentially evaluated compile-time. Since we have an std::cout expression in foo, even marking foo constexpr doesn’t make foo to evaluate compile-time, because std::cout does a run-time job and can’t be evaluated compile time.

If we remove the std::cout expression too, the code would compile successfully:

# include <iostream>
# include <type_traits>

template <typename T, typename ... Ts>
constexpr std::common_type_t <T, Ts ...> foo (T v, Ts ... vs) {
	if constexpr (0 == sizeof ... (vs)) {
		return v;
	}
	else {
		return v + foo <Ts ...> (vs ...);
	}
}

int main () {
	if constexpr (0 < foo (1, 2, 3)) {
		std::cout << "positive" << std::endl;
	}

	std::cout << foo (1, 2.2f, 3.3) << std::endl;
}

Output:

positive
6.5

Here we use std::common_type_t to avoid the fixed return type.

Template recursion with structs

We can use parameter packs also with structs. We can rewrite our sum function with structs:

# include <iostream>

template <int ...>
struct Foo;

template <int V, int ... Vs>
struct Foo <V, Vs ...> {
	static constexpr int value = V + Foo <Vs ...>::value;
};

template <>
struct Foo <> {
	static constexpr int value = 0;
};

int main () {
	std::cout << Foo <1, 2, 3>::value << std::endl;
}

Here we first declare Foo as a struct taking zero or more integers as template parameters. Then we specialize the case where we have at least one integer in template parameters. Since we didn’t use any branching here to avoid the evaluation of Foo <> case, we’ve specialized that case too. Since neither specialization’s covered argument set is a subset of another’s, and specializations’ covered argument sets must be a subsets of the primary template’s covered argument set, we’ve declared the primary template having template parameters covering the union of the covered argument sets of both specializations: any number of integer arguments. In each case one of the specializations is more specialized, more strict match for the arguments passed than the primary template, so the primary template never gets chosen over the specializations and can be empty.

Recursions done right

When implementing a recursion always remember these rules quoted from “Data Structures and Algorithm Analysis in C++ (4th ed.) - Mark Allen Weiss”:

1. Base cases. You must always have some base cases, which can be solved without recursion.
2. Making progress. For the cases that are to be solved recursively, the recursive call must always be to a case that makes progress toward a base case.
3. Design rule. Assume that all the recursive calls work.
4. Compound interest rule. Never duplicate work by solving the same instance of a problem in separate recursive calls.

Here the base case is Foo <> and we’re making progress at each recursive call reducing the parameter’s count by one.

Calculating n’th Fibonacci number is a little tricky. An obvious implementation would be:

# include <iostream>

template <unsigned N>
struct Fib {
	static constexpr unsigned value = Fib <N - 1>::value + Fib <N - 2>::value;
};

template <>
struct Fib <0> {
	static constexpr unsigned value = 0;
};

template <>
struct Fib <1> {
	static constexpr unsigned value = 1;
};

int main () {
	std::cout << Fib <0>::value << std::endl;
	std::cout << Fib <1>::value << std::endl;
	std::cout << Fib <2>::value << std::endl;
	std::cout << Fib <3>::value << std::endl;
	std::cout << Fib <4>::value << std::endl;
	std::cout << Fib <5>::value << std::endl;
	std::cout << Fib <6>::value << std::endl;
	std::cout << Fib <7>::value << std::endl;
	std::cout << Fib <8>::value << std::endl;
	std::cout << Fib <9>::value << std::endl;
}

The output is:

0
1
1
2
3
5
8
13
21
34

The implementation is trivial. We define the Fib templated struct with a primary specialization of Fib = Fib<N - 1> + F<N - 2>. Then we specialize the N = 0 and N = 1 cases. Since they are more specialized for template parameters 0 and 1, everything works fine.

But we’ve violated the 4th rule: in Fib the value of Fib<N - 2> is the same as the value of Fib<M - 1> in Fib<M = N - 1>. For example in Fib<9> we calculate Fib<8> + Fib<7>. But we calculate Fib<7> also in Fib<8> = Fib<7> + Fib<6>. And furthermore we calculate Fib <9> in Fib<10> and Fib<11>, hence we calculate Fib<7> four times to calculate Fib<11>, and this number grows exponentially.

To avoid calculating values multiple times we can implement Fib like this:

template <unsigned N>
struct Fib {
	using prev = Fib <N - 1>;
	static constexpr unsigned value = prev::value + prev::prev_value;
	static constexpr unsigned prev_value = prev::value;
};

template <>
struct Fib <0> {
	static constexpr unsigned value = 0;
	static constexpr unsigned prev_value = 1;
};

Note that 1 isn’t the previous value of Fib<0>, we use it as a trick to help to calculate Fib<1>. Here Fib calculates only Fib<n - 1>, so nothing is calculated twice.

C++ utilities to work with templates

An useful property of templated structs is that we can capture one struct’s parameters inside another one:

# include <iostream>

template <int ...>
struct Foo;

template <int V, int ... Vs>
struct Foo <V, Vs ...> {
	static constexpr int value = V + Foo <Vs ...>::value;
};

template <>
struct Foo <> {
	static constexpr int value = 0;
};

template <typename>
struct Bar;

template <int ... Vs>
struct Bar <Foo <Vs ...>> {
	static constexpr int value = (Vs + ... + 0);
};

template <typename>
struct FooParamCount;

template <int ... Vs>
struct FooParamCount <Foo <Vs ...>> {
	static constexpr int value = sizeof ... (Vs);
};

int main () {
	std::cout << Foo <1, 2, 3>::value << std::endl;
	std::cout << Bar <Foo <1, 2, 3>>::value << std::endl;
	std::cout << FooParamCount <Foo <1, 2, 3, 4, 5>>::value << std::endl;
}

Here Bar is a templated struct specialized only for Foo <…>. We’ve specialized Bar such a way that we have access to Foo’s template parameters inside Bar. Bar uses a fold expression to calculate Foo’s value without a recursion and FooParamCount calculates Foo’s parameter count with the sizeof … operator. The output is:

6
6
5

Generating parameter packs with inheritance recursion

We can generate a parameter pack for example to calculate the sum of the numbers 1 to N:

# include <iostream>
# include <utility>

template <unsigned N, typename = std::make_integer_sequence <unsigned, N>>
struct Sum;

template <unsigned N, unsigned ... Ns>
struct Sum <N, std::integer_sequence <unsigned, Ns ...>> {
	static constexpr unsigned value = (Ns + ... + N);
};

int main () {
	std::cout << Sum <0>::value << std::endl;
	std::cout << Sum <1>::value << std::endl;
	std::cout << Sum <2>::value << std::endl;
	std::cout << Sum <3>::value << std::endl;
	std::cout << Sum <4>::value << std::endl;
	std::cout << Sum <5>::value << std::endl;
	std::cout << Sum <6>::value << std::endl;
	std::cout << Sum <7>::value << std::endl;
	std::cout << Sum <8>::value << std::endl;
	std::cout << Sum <9>::value << std::endl;
}

Here when we use Sum , the primary template initializes the second parameter with std::make_integer_sequence <unsigned, N» which “returns” std::integer_sequence <unsigned, 0, 1, … N - 1>. Then the partial specialization becomes chosen since it’s more specialized for unsigned and std::integer_sequence parameters. Then we take the integer sequence and sum up with a fold expression and add N since the sequence consists of 0, 1, … N - 1. We could increase each value in fold by one instead:

template <unsigned N, typename = std::make_integer_sequence <unsigned, N>>
struct Sum;

template <unsigned N, unsigned ... Ns>
struct Sum <N, std::integer_sequence <unsigned, Ns ...>> {
	static constexpr unsigned value = ((Ns + 1) + ... + 0);
};

Now let’s understand how std::integer_sequence and std::make_integer_sequence work. std::integer_sequence can be replaced with an empty struct containing integers as parameters:

template <typename T, T ... Vs>
struct IntegerSequence {};

This struct stores its data in its parameters!

Then we need an std::make_integer_sequence alternative which “returns” an IntegerSequence. But note that std::make_integer_sequence <…> isn’t a function call. It’s a type alias to std::integer_sequence template. We can implement an alternative like this:

template <typename T, std::size_t N, T ... Ns>
struct MakeIntegralSequenceImpl : MakeIntegralSequenceImpl <T, N - 1, Ns ..., N - 1> {};

template <typename T, T ... Ns>
struct MakeIntegralSequenceImpl <T, 0, Ns ...> {
	using type = IntegerSequence <T, Ns ...>;
};

template <typename T, std::size_t N>
using MakeIntegralSequence = MakeIntegralSequenceImpl <T, N>::type;

Here in MakeIntegralSequenceImpl we have inheritance recursion. The base case is the N=0 specialization. Each recursive step in the inheritance evaluation decreases N by one making a progress toward the base case. In each step of the recursion we also add the sequential number at the end of the template parameter pack. The base case defines a type alias which stores all of the generated numbers in IntegerSequence’s parameter list. Then we have a type alias for MakeIntegralSequenceImpl as we’ve done for MiniDecay.

Now the complete example would be:

# include <iostream>
# include <utility>



template <typename T, T ... vs>
struct IntegerSequence {};

template <typename T, std::size_t N, T ... Ns>
struct MakeIntegralSequenceImpl : MakeIntegralSequenceImpl <T, N - 1, Ns ..., N - 1> {};

template <typename T, T ... Ns>
struct MakeIntegralSequenceImpl <T, 0, Ns ...> {
	using type = IntegerSequence <T, Ns ...>;
};

template <typename T, std::size_t N>
using MakeIntegralSequence = MakeIntegralSequenceImpl <T, N>::type;



template <unsigned N, typename = MakeIntegralSequence <unsigned, N>>
struct Sum;

template <unsigned N, unsigned ... Ns>
struct Sum <N, IntegerSequence <unsigned, Ns ...>> {
	static constexpr unsigned value = ((1 + Ns) + ... + 0);
};

int main () {
	std::cout << Sum <0>::value << std::endl;
	std::cout << Sum <1>::value << std::endl;
	std::cout << Sum <2>::value << std::endl;
	std::cout << Sum <3>::value << std::endl;
	std::cout << Sum <4>::value << std::endl;
	std::cout << Sum <5>::value << std::endl;
	std::cout << Sum <6>::value << std::endl;
	std::cout << Sum <7>::value << std::endl;
	std::cout << Sum <8>::value << std::endl;
	std::cout << Sum <9>::value << std::endl;

	[] <unsigned ... Ns> (std::integer_sequence <unsigned, Ns ...>) -> void {
		((std::cout << Ns << ' '), ...) << std::endl;
	} (std::make_integer_sequence <unsigned, 9> {});
}

The output is:

0
1
3
6
10
15
21
28
36
45
0 1 2 3 4 5 6 7 8

At the end of the main function we have a templated lambda which helps to print the std::integer_sequence.

We can do a lot of fun stuff with templates, but let’s stay on topic, we need a tuple!

The tuple. Finally !!

When we started to implement a tuple before learning about parameter packs and template recursion, we ended up with this not-tuple-yet implementation:

# include <iostream>
# include <memory>
# include <type_traits>
# include <utility>

template <typename T>
struct S1 {
	T value;

	template <typename T1>
	S1 (T1 && t)
		: value (std::forward <T1> (t))
	{}
};

template <typename T, typename U>
struct S2 : S1 <T> {
	U value;

	template <typename T1, typename U1>
	S2 (T1 && t, U1 && u)
		: S1 <T> (std::forward <T1> (t))
		, value (std::forward <U1> (u))
	{}
};

template <typename T, typename U>
S2 (T, U) -> S2 <T, U>;

int main () {
	S2 s (10, std::make_unique <int> (10));
	std::cout << * s.value.get () << std::endl;
	std::cout << static_cast <S1 <int> &> (s).value << std::endl;
}

Now the full implementation is trivial. We have to take types and values with parameter packs and store in the inheritance hierarchy with an inheritance recursion:

# include <iostream>
# include <string>
# include <utility>

template <typename ...>
struct Tuple;

template <typename T, typename ... Ts>
struct Tuple <T, Ts ...> : Tuple <Ts ...> {
	T value;

	template <typename U, typename ... Us>
	Tuple (U && u, Us && ... us)
		: Tuple <Ts ...> (std::forward <Us> (us) ...)
		, value (std::forward <U> (u))
	{}
};

template <> struct Tuple <> {};

template <typename ... Ts>
Tuple (Ts ...) -> Tuple <Ts ...>;

int main () {
	Tuple <int, double, std::string> t (10, 20.30, "abc");

	std::cout << t.value << std::endl;
	std::cout << static_cast <Tuple <double, std::string> &> (t).value << std::endl;
	std::cout << static_cast <Tuple <std::string> &> (t).value << std::endl;
}

The output is:

10
20.3
abc

Here our recursive base case is Tuple <> and each recursive step of inheritance makes progress toward the base case decreasing the size of the template parameter pack by one.

We store the members of the tuple in the inheritance hierarchy and then access them with static cast. STL has std::get to work with std::tuple:

# include <iostream>
# include <tuple>

int main () {
	std::tuple t (10, 20.30, "abc");

	std::cout << std::get <0> (t) << std::endl;
	std::cout << std::get <1> (t) << std::endl;
	std::cout << std::get <2> (t) << std::endl;

	std::get <1> (t) = 40.50;
	std::cout << std::get <1> (t) << std::endl;
}

The output is:

10
20.3
abc
40.5

The implementation of std::get is a little tricky. std::get takes the tuple member index and returns a reference to the member. We first have to obtain the type of the member at the index:

template <std::size_t N, typename T, typename ... Ts>
struct NthType : NthType <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthType <0, T, Ts ...> {
	using type = T;
};

Then with a recursive function we can return an lvalue reference to the member:

template <std::size_t N, typename T, typename ... Ts>
constexpr NthType <N, T, Ts ...>::type & getTupleMember (Tuple <T, Ts ...> & tuple) noexcept {
	if constexpr (0 == N) {
		return tuple.value;
	}
	else {
		return getTupleMember <N - 1> (static_cast <Tuple <Ts ...> &> (tuple));
	}
}

Here our base case of the recursion is N = 0. When N = 0 we return the value member of the appropriate inheritance level. Otherwise we cast the tuple to an lvalue reference of the next inheritance level and decrease N by 1 moving toward the base case. Since the getTupleMember function does only static_cast and member access, we mark it as noexcept. Here getTupleMember function solves two different tasks: it calculates the N’th member type then provides an access to it. We can separate these two tasks and move the N’th inheritance level tuple type calculation outside the getTupleMember function:

template <std::size_t N, typename T, typename ... Ts>
struct NthInheritanceLevelTuple : NthInheritanceLevelTuple <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthInheritanceLevelTuple <0, T, Ts ...> {
	using type = Tuple <T, Ts ...>;
};

template <std::size_t N, typename T, typename ... Ts>
constexpr NthType <N, T, Ts ...>::type & getTupleMember (Tuple <T, Ts ...> & tuple) noexcept {
	return static_cast <NthInheritanceLevelTuple <N, T, Ts ...>::type &> (tuple).value;
}

And the whole example becomes:

# include <cstddef>
# include <iostream>
# include <string>
# include <utility>

template <typename ...>
struct Tuple;

template <typename T, typename ... Ts>
struct Tuple <T, Ts ...> : Tuple <Ts ...> {
	T value;

	template <typename U, typename ... Us>
	Tuple (U && u, Us && ... us)
		: Tuple <Ts ...> (std::forward <Us> (us) ...)
		, value (std::forward <U> (u))
	{}
};

template <> struct Tuple <> {};

template <typename ... Ts>
Tuple (Ts ...) -> Tuple <Ts ...>;

template <std::size_t N, typename T, typename ... Ts>
struct NthType : NthType <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthType <0, T, Ts ...> {
	using type = T;
};

template <std::size_t N, typename T, typename ... Ts>
struct NthInheritanceLevelTuple : NthInheritanceLevelTuple <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthInheritanceLevelTuple <0, T, Ts ...> {
	using type = Tuple <T, Ts ...>;
};

template <std::size_t N, typename T, typename ... Ts>
constexpr NthType <N, T, Ts ...>::type & getTupleMember (Tuple <T, Ts ...> & tuple) noexcept {
	return static_cast <NthInheritanceLevelTuple <N, T, Ts ...>::type &> (tuple).value;
}

int main () {
	Tuple <int, double, std::string> t (10, 20.30, "abc");

	std::cout << getTupleMember <0> (t) << std::endl;
	std::cout << getTupleMember <1> (t) << std::endl;
	std::cout << getTupleMember <2> (t) << std::endl;
	getTupleMember <1> (t) = 40.50;
	std::cout << getTupleMember <1> (t) << std::endl;

	// std::cout << getTupleMember <0> (Tuple (1)) << std::endl; // error
}

Our getTupleMember function takes a reference to the tuple and returns a reference to the member. To be able to work with rvalue tuples, we have to overload the getTupleMember function to take const lvalue references:

# include <cstddef>
# include <iostream>
# include <string>
# include <utility>

template <typename ...>
struct Tuple;

template <typename T, typename ... Ts>
struct Tuple <T, Ts ...> : Tuple <Ts ...> {
	T value;

	template <typename U, typename ... Us>
	Tuple (U && u, Us && ... us)
		: Tuple <Ts ...> (std::forward <Us> (us) ...)
		, value (std::forward <U> (u))
	{}
};

template <> struct Tuple <> {};

template <typename ... Ts>
Tuple (Ts ...) -> Tuple <Ts ...>;

template <std::size_t N, typename T, typename ... Ts>
struct NthType : NthType <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthType <0, T, Ts ...> {
	using type = T;
};

template <std::size_t N, typename T, typename ... Ts>
struct NthInheritanceLevelTuple : NthInheritanceLevelTuple <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthInheritanceLevelTuple <0, T, Ts ...> {
	using type = Tuple <T, Ts ...>;
};

template <std::size_t N, typename T, typename ... Ts>
constexpr NthType <N, T, Ts ...>::type & getTupleMember (Tuple <T, Ts ...> & tuple) noexcept {
	return static_cast <NthInheritanceLevelTuple <N, T, Ts ...>::type &> (tuple).value;
}

template <std::size_t N, typename T, typename ... Ts>
constexpr const NthType <N, T, Ts ...>::type & getTupleMember (const Tuple <T, Ts ...> & tuple) noexcept {
	return static_cast <const NthInheritanceLevelTuple <N, T, Ts ...>::type &> (tuple).value;
}

int main () {
	Tuple <int, double, std::string> t (10, 20.30, "abc");

	std::cout << getTupleMember <0> (t) << std::endl;
	std::cout << getTupleMember <1> (t) << std::endl;
	std::cout << getTupleMember <2> (t) << std::endl;
	getTupleMember <1> (t) = 40.50;
	std::cout << getTupleMember <1> (t) << std::endl;

	std::cout << getTupleMember <0> (Tuple (1)) << std::endl;
}

Now let’s analyze a little example to see how we can make our code cleaner:

# include <iostream>

struct S { int value = 10; };
struct Q { int value = 20; };

template <typename T>
int getValue (const T & t) {
	return t.value;
}

int main () {
	S s;
	Q q;

	std::cout << getValue (s) << std::endl;
	std::cout << getValue (q) << std::endl;
}

Here we have two structs and a template function which prints the value member of the argument. This function works with both structs. Now let’s see what happens here:

# include <iostream>

struct S {
	int value = 10;

	template <typename T>
	friend int getValue (const T & t) {
		return t.value;
	}
};
struct Q { int value = 20; };

int main () {
	S s;
	Q q;

	std::cout << getValue (s) << std::endl;
	// std::cout << getValue (q) << std::endl; // error
}

Here we’ve moved getValue inside the struct S. But it’s not a member function (method), it’s a regular friend function of S which is visible only when the argument is type of S. In case of the Q argument the function isn’t visible, hence we’ve got an error. This is a property of argument dependent lookup.

We can move our getTupleMember function inside the tuple struct like this:

# include <cstddef>
# include <iostream>
# include <string>
# include <utility>

template <typename ...>
struct Tuple;

template <std::size_t N, typename T, typename ... Ts>
struct NthType : NthType <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthType <0, T, Ts ...> {
	using type = T;
};

template <std::size_t N, typename T, typename ... Ts>
struct NthInheritanceLevelTuple : NthInheritanceLevelTuple <N - 1, Ts ...> {};

template <typename T, typename ... Ts>
struct NthInheritanceLevelTuple <0, T, Ts ...> {
	using type = Tuple <T, Ts ...>;
};

template <typename T, typename ... Ts>
struct Tuple <T, Ts ...> : Tuple <Ts ...> {
	template <typename U, typename ... Us>
	Tuple (U && u, Us && ... us)
		: Tuple <Ts ...> (std::forward <Us> (us) ...)
		, value (std::forward <U> (u))
	{}

	template <std::size_t N, typename U, typename ... Us>
	constexpr friend NthType <N, U, Us ...>::type & getTupleMember (Tuple <U, Us ...> & tuple) noexcept;

	template <std::size_t N, typename U, typename ... Us>
	constexpr friend const NthType <N, U, Us ...>::type & getTupleMember (const Tuple <U, Us ...> & tuple) noexcept;

private:
	T value;
};

template <> struct Tuple <> {
	template <std::size_t N, typename U, typename ... Us>
	constexpr friend NthType <N, U, Us ...>::type & getTupleMember (Tuple <U, Us ...> & tuple) noexcept {
		return static_cast <NthInheritanceLevelTuple <N, U, Us ...>::type &> (tuple).value;
	}

	template <std::size_t N, typename U, typename ... Us>
	constexpr friend const NthType <N, U, Us ...>::type & getTupleMember (const Tuple <U, Us ...> & tuple) noexcept {
		return static_cast <const NthInheritanceLevelTuple <N, U, Us ...>::type &> (tuple).value;
	}
};

template <typename ... Ts>
Tuple (Ts ...) -> Tuple <Ts ...>;

int main () {
	Tuple <int, double, std::string> t (10, 20.30, "abc");

	std::cout << getTupleMember <0> (t) << std::endl;
	std::cout << getTupleMember <1> (t) << std::endl;
	std::cout << getTupleMember <2> (t) << std::endl;
	getTupleMember <1> (t) = 40.50;
	std::cout << getTupleMember <1> (t) << std::endl;

	std::cout << getTupleMember <0> (Tuple (1)) << std::endl;
}
